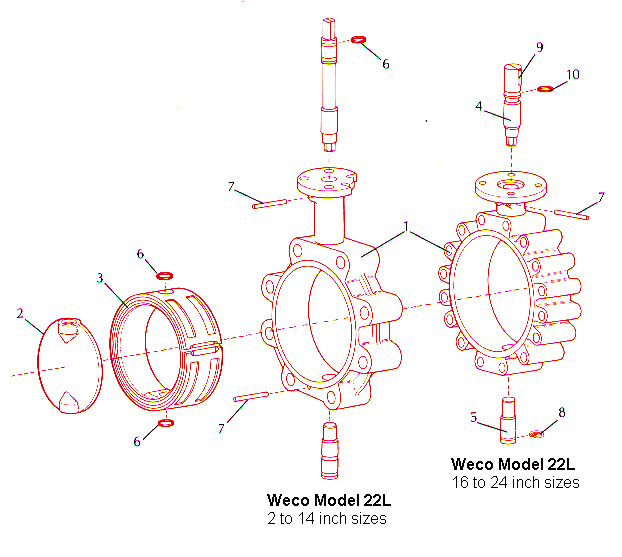

Model 22L Butterfly Valve Components
|
 |
|
Butterfly Valve Components |
| Ref No. |
Component Description |
Number Required (Notes) |
| 1 |
Body |
1 |
| 2 |
Disc |
1 |
| 3 |
Seat |
1 |
| 4 |
Upper Stem |
1 |
| 5 |
Lower Stem |
1 |
| 6 |
O-Ring |
3(1) |
| 7 |
Retainer Pin |
2(2) |
| 8 |
Retainer Snap Ring |
1(3) |
| 9 |
Locking Key |
1(3) |
| 10 |
Upper Stem Seal |
1(3) |
| Notes: |
1. 16- to 24-inch valves only
use 2. |
| 2. 16- to 24-inch valves
only use 1; 12- and 14-inch valve uses 4. |
| 3. Applies to 16- to
24-inch valves only. |
