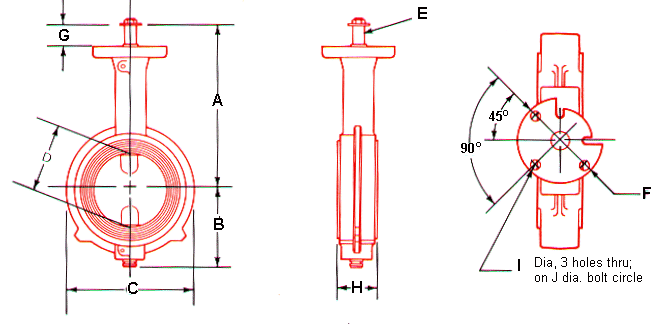

Weco Model 22 Butterfly Valve Dimensions
|
 |
|
DIM
|
Valve Size, inches |
| 2 |
2
1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
| A |
7
9/32 |
7
25/32 |
8
1/16 |
9
5/32 |
9
21/32 |
105/32 |
1119/32 |
1227/32 |
14
11/32 |
| B |
3 |
3
11/32 |
3
5/8 |
41/4 |
413/16 |
5
5/16 |
7 |
8
1/4 |
9
3/4 |
| C |
4
1/8 |
4
7/8 |
5
3/8 |
6
7/8 |
6
7/8 |
83/4 |
11 |
133/8 |
161/16 |
| D |
21/16 |
2
1/2 |
31/16 |
41/16 |
51/16 |
61/16 |
81/16 |
10 |
12 |
| E |
5/8Sq |
5/8Sq |
5/8Sq |
5/8Sq |
5/8Sq |
5/8Sq |
5/8Sq |
7/8Sq |
11/8Sq |
| F |
4 |
4 |
4 |
4 |
4 |
4 |
6 |
6 |
6 |
| G |
1
1/32 |
1
1/32 |
1
1/32 |
1
9/32 |
1
9/32 |
1
9/32 |
19/32 |
1
9/32 |
1
9/32 |
| H |
1
5/8 |
1
3/4 |
1
3/4 |
2 |
2
1/8 |
2
1/8 |
2
1/2 |
2
1/2 |
3 |
| I |
7/16 |
7/16 |
7/16 |
7/16 |
7/16 |
7/16 |
9/16 |
9/16 |
9/16 |
| J |
3
1/4 |
3
1/4 |
3
1/4 |
3
1/4 |
3
1/4 |
3
1/4 |
5 |
5 |
5 |
|
